Arduino compatible Electronics Circuit Design & Eagle PCB Design course using Atmega328p Microcontroller for Beginners
What you’ll learn
Practical aspects of electronics components – Resistor, Capacitor, Potentiometer
How to use Autodesk Eagle software
Hardware Design, Circuit Design, Schematic Design, PCB Design
PCB ordering process
Components ordering process
Bill Of Material, Gerber Data generation
Hardware Testing & Troubleshooting / Board Bring Up
Requirements
Basic Electronics Knowledge (Not Mandatory)
Motivated to learn electronics
Description

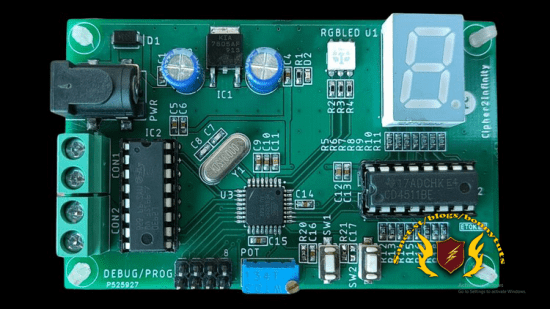

Training OverviewLearn how to design PCB from scratch.Covers the end-to-end hardware development process, with a step by step approach.Uses Eagle software for PCB designing & Arduino IDE for programming the hardware.DescriptionsThis training will arm you with knowledge required to design your own PCBs from scratch. Every single step along the way has been thoroughly covered.We will be building a custom Arduino UNO board from scratch, which can be programmed using the Arduino IDE. The training also covers some essential circuits (viz RGB LED, switches, preset, motor drivers, seven segment displays), and their interfacing with the microcontroller on the custom Arduino that we are building. You will find yourself using these circuits in a lot of future projects/products.All in all, this training covers the end-to-end hardware development process. After completing the training, you will be confident in designing your own hardware.Key Skills you will learnCircuit DesignPCB DesignHardware testingTroubleshooting hardware issuesWho is this training forBeginners, hobbyists & students getting started in embedded designing.People building hardware for their engineering project.People collecting knowledge to grab an internship or job in the embedded field.You have any of the following questions:a. How to convert an idea to a finished PCB?b. What is the workflow for designing hardware?c. How to approach schematic & layout designing?d. How to read the components datasheet?e. Where to order the PCB?f. Where to get the components?g. How are components soldered?h. How to test & troubleshoot the circuit?What will you learnPCB Designing using eagle softwareAtmega328P Microcontroller based system design (microcontroller used in Arduino Uno)Power supply system designCircuit design for LED, RGB LED, Switch, Preset, Motor Driver, Seven segment Display.Purpose of every single component used & how to select them.How to read components datasheetPCB ordering processComponents sourcingComponents solderingHardware Testing & troubleshoot techniquesWhy should you take this trainingHigh industry demand : PCB design is one of the key skills required to work as a hardware design engineer in electronics product companies like Qualcomm, Texas Instruments, Microchip etc.It’s everywhere in your life : Whether it’s smart watches, smart phones, IOT devices or electric vehicles, PCBs are everywhere. If designing a system based on a microcontroller & microprocessor excites you, then PCB design is for you.High scope : The total installed base of IOT devices worldwide is projected to be around 30 billion units by 2025. Due to the surge in products being developed, the demand for PCB design engineers is increasing day by day.
Who this course is for
Beginner, Hobbyist & Professionals who want to learn hardware design & PCB Design
Those who want to get started with hardware design process from scratch
Those who are good in software and want to understand hardware
