IDEA StatiCa是专门为工程设计人员量身打造的一款建筑设计软件，该软件不仅具有灵活高效的系统程序，而且在使用方面相当便捷，主要服务于钢结构和混凝土，也是目前为止行业内最强大的，它可以有效的帮助结构工程师进行住宅、民用和工业结构设计，尽最大可能的通过减少结构缺陷的风险，降低建筑构件的材料消耗.
File size: 240 MB
Engineering software dedicated to structural design and code-check of joints, cross sections, beams and other details.
Design and code-check of steel connections and joints

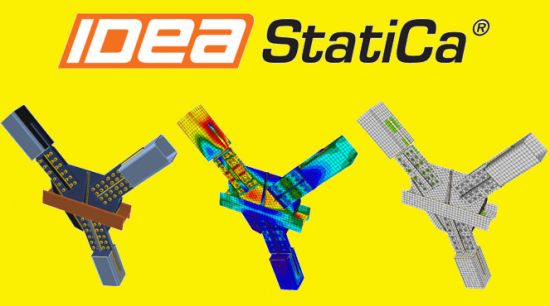

IDEA StatiCa Connection designs and checks welded or bolted connections, 2D or 3D joints, anchoring or footing of all topologies. We provide clear pass / fail checks according to EN/AISC/CISC/AU/SP 16 standards in a complete report with drawings. For analysis, the unique CBFEM method based on finite elements is used. Modeling considers an elastic-plastic material model for all the elements of the joint – plates, elements, bolts and welds. Prestressed bolts and plastic behavior of the welds are also taken into account.
Analysis of stress and strain of all connections and joints.
The load is applied in increments, the corresponding stress and strain is calculated and evaluated.
Linear analysis of stability of the connection elements.
The coefficient of critical load with the corresponding deflection shapes.
Rotational and axial joint stiffness (rigid, semi-rigid and pinned) and joint characteristics – initial stiffness.
Seismicity checks.
Iterative calculation of design load of the joint.
Reinforcement and code-check of concrete walls, beams, and details
IDEA StatiCa Detail reinforces and checks all types of walls, beams, and details (in 2D) such as dapped ends, openings, hangings, brackets, diaphragms, frame joints and many more. We provide clear pass / fail checks of ULS and SLS according to the code with complete report and bill of material. The most effective position of reinforcement is identified automatically. IDEA StatiCa Detail uses finite element analysis to break the limits of the standard design approach.
Non-linear analysis performed in the background.
Stress and strain determined by modified compression field theory.
Reinforcement results based on tension chord model.
Crack width and deflection checks. Compression softening.
Tension stiffening.
Results verified by ETH Zurich.
IDEA StatiCa in the global workflow
Do your project from scratch or build on geometry and loading imported from Robot, Revit, MIDAS Civil + Gen, STAAD.Pro, SAP 2000, Scia Engineer, RFEM, RSTAB, AxisVM, ConSteel and others.
Take advantage of the link between IDEA StatiCa and Tekla Structures or Advance Steel to provide workshop drawings and support manufacturing process.
