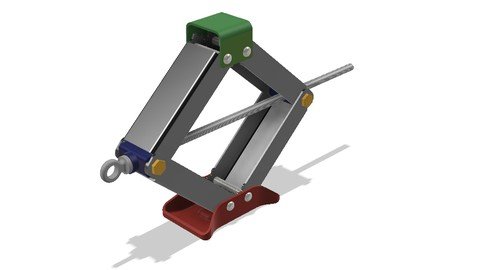

Learn how to design full detailed Vehicle jack along with design calculations and working principles in Fusion 360
What you’ll learn
Learn How to design a mechanical device from concept to detail
Learn how to use basic engineering static principles to design machine
Learn Design workflows in Autodesk Fusion 360 to make complex sheet metal parts
Learn about the methodology to solve an engineering problem with Design and calculation
Get the Source Files to design your own project
Requirements
A basic understanding of Engineering mechanics
Some familiarity with Autodesk Fusion 360 to get started
Description
This is a course Centered around solving a Mechanical design problem of Designing a Vehicle Jack for a certain application for a vehicle. Its a unique course which not only covers the CAD modelling part of mechanical design but combines it with first principle explanations of the working mechanism and Force analysis .It is a “Over the Shoulder ” training walk-through of solving a problem step by step and learning by doing. What is covered in the course?Basics of a Car jack – the parts, function The Problem definitionDeveloping a Concept sketch which is parametric to guide the CAD design Detailed CAD design of each part and construction of the assembly of the Jack .Design calculations to find the Forces in the system Understand the basics of Lead screw , thread specifications and the working principle of inclined plane applied to threads. Calculations for Torque in Operating the JackFinding the conditions for self locking of the Jack screwDesign calculations to evaluate strength and stability of the screw and pinsDiscussion on Failure modes and ways to improve design to counteract them It is a Fully practical course with all the course material available for download.The best value you can derive from this course is by designing the device with your own dimensions and inputs. All the Guiding steps are provided to arrive at a basic fully specified design. A Basic Working level knowledge of Autodesk Fusion 360 – the free mechanical design software will be necessary but most CAD modelling is step by step with explanation of each workflow .
