Solid Edge 2D Drafting The Complete Course

Master CAD software Solid Edge 2D drafting for 2D drawings

What you’ll learn
Understand dashboard
Master navigation
Edit parameters
Use grid
Master selections
Create sketches
Edit sketches
Create rectangles
Create lines
Create circles
Create arcs
Add dimensions
Add annotations
Add text
Understand layers
Edit properties
Create blocks
Create drawings
Create plans

Requirements
You need to download Solid Edge

Description

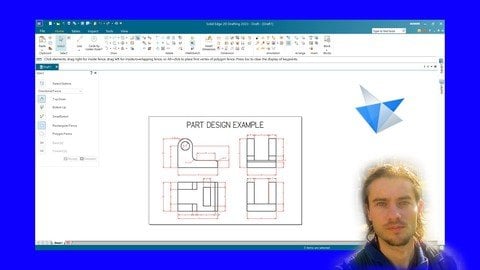

Solid Edge 2D draftingSolid Edge 2D drafting is powerful CAD software. This version of Solid Egde allows you to focus on 2D drawing to create technical drawings, plans and industrial drawings. Many features allow you to work efficiently on 2D drawing. It is possible to create projects with sketches, dimensions, colors. It allows you to work with layers and create blocks. Then this work is presented on a template page. It can also be printed. If you need a free tool for making technical drawings of all kinds, then this software will be suitable. Work with layers, create blocks, master tools, add dimensions. Create your projects in 2D, then have an important step in creating a project. Solid Edge 2D drafting supports a wide range of file formats.Solid Edge 2D drafting versionThis is the free version of Solid Edge which focuses on 2D drawing. This version focuses on sketches and the presentation of these sketches on page templates. It is not possible with this version to work on 3D modeling. If you want to focus on CAD design with 2D design, and you don’t need the 3D modeling part, this version will be ideal. This version also allows you to master the full version of Solid Edge, because the entire sketching and drawing part is worked in detail in Solid Edge 2D drafting. If you master Solid Edge 2D drafting, you master the entire sketching and layout part of Solid Edge.Training courseIn this training course you will learn how to use Solid Edge 2D drafting software for CAD. Step by step, you will learn the different features for working on 2D drawing. Getting started with the dashboard and navigation. You will see how to use design tools to work with sketches. You will learn how to use the transform features to be able to edit drawings. You will see how to use layers and create blocks. You will see how to master the pages and adjust the designs on the pages. At the end of the training, training will allow you to apply the features seen in the course.

Overview
Section 1: Introduction

Lecture 1 Introduction

Section 2: Start with Solid Edge

Lecture 2 Start with software

Lecture 3 Start with dashboard

Lecture 4 Edit preferences

Lecture 5 Master navigation

Lecture 6 Edit grid

Section 3: Manage pages

Lecture 7 Edit pages

Lecture 8 Manage pages

Section 4: Create sketches

Lecture 9 Create rectangles

Lecture 10 Create polygons

Lecture 11 Create lines

Lecture 12 Add points

Lecture 13 Draw shapes

Lecture 14 Create circles

Lecture 15 Create arcs

Lecture 16 Create curves

Lecture 17 Create conics

Lecture 18 Create tables

Section 5: Edit sketches

Lecture 19 Create fillets

Lecture 20 Create chamfers

Lecture 21 Move sketches

Lecture 22 Rotate sketches

Lecture 23 Scale sketches

Lecture 24 Offset sketches

Lecture 25 Stretch sketches

Lecture 26 Create symetries

Lecture 27 Trim sketches

Lecture 28 Split sketches

Lecture 29 Extend sketches

Lecture 30 Create rectangular patterns

Lecture 31 Create circular patterns

Lecture 32 Convert to curve

Lecture 33 Fill sketches

Section 6: Add constraints

Lecture 34 Add constraints part 1

Lecture 35 Add constraints part 2

Section 7: Add dimensions

Lecture 36 Add dimensions part 1

Lecture 37 Add dimensions part 2

Section 8: Add annotations

Lecture 38 Add annotations part 1

Lecture 39 Add annotations part 2

Section 9: Add text

Lecture 40 Add text

Section 10: Master layers

Lecture 41 Master layers part 1

Lecture 42 Master layers part 2

Section 11: Edit properties

Lecture 43 Edit properties part 1

Lecture 44 Edit properties part 2

Section 12: Create blocks

Lecture 45 Create blocks part 1

Lecture 46 Create blocks part 2

Section 13: Project create parts

Lecture 47 Create pipe part 1

Lecture 48 Create pipe part 2

Lecture 49 Create object part 1

Lecture 50 Create object part 2

Section 14: Project floor plan

Lecture 51 Project create walls

Lecture 52 Project add doors

Lecture 53 Project add windows

Lecture 54 Project add text

Lecture 55 Project add dimensions

Lecture 56 Project add title

Lecture 57 Project create frame

Lecture 58 Project export

People who want to create 2D drawings,Peope who want free CAD software,People who want to create 2D plans,People who want to introduce drawings
